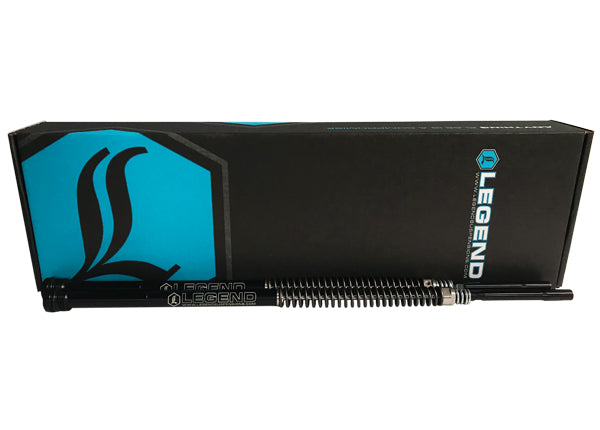

Legend AXEO39TS Front End Suspension (Requires Separate Purchase Of +2 Fork Tubes)

Fits Dyna, Sportster, and FXR models. Please refer to the product search feature on our website to verify fitment for your specific year and model motorcycle.

NOTE:   Requires the use of aftermarket +2″ (26.25″ long) upper fork tubes

FEATURES:

Legend Suspension has once again innovated a new way to outperform any other 39 cartridge kit on the market. There’s never been a front end like this before.

• Innovative through shaft design is first of it’s kind in front fork application. (Not like others offering spring drop in or nitrogen)
• Easily installs in few simple steps
• Includes 2 mono-tube, damper cartridges
• Unique through shaft: technology so there’s no pressure at end of stroke
• Utilizes a two stage management system controlling Fluid flow and high pressure
• Compression and rebound flow rate is managed via high flow damper piston and deflective disc set
• Secondary high pressure control system, using precision load rated wave springs, allowing spike over pressure to by-pass, protecting the deflective disc’s precision valve opening limits
• Through shaft eliminates the rod pressure in and out issues plus piston rod is always in fluid
• 2 precision linear bearings support both sides of the rod and piston assembly
• Proprietary performance spring rated main spring Machined 303 Stainless threaded pre-load adjuster
• Increased pre-load range allows fine tuning for various riding styles and weights
• 5″ of travel
• Ride quality is smooth and controlled
• Improves stability, cornering and traction
• Eliminates front-end dive during aggressive braking and maneuvering
• Firm feel for high-speed sweeping turns
• Eliminates bottoming out on large bumps or potholes
• Reduces dragging pegs
• Designed for optimum performance with Legend rear suspension system
• Includes Maxima Racing Oil in cartridge and quart bottle
• P65 WARNING: Cancer and Reproductive Harm
• Lifetime Warranty
• Made by hand in Sturgis, SD USA
• Maintains stock hydraulic bump stop
• Purchase of new fork cups recommended or installer will have to remove from stock forks

Note:

• Requires the use of aftermarket +2″ (26.25″ long) upper fork tubes.
• Due to the nature of the design, this front-end kit will raise the overall ride height of the motorcycle.
• Additional Part required for FXR and XL 86-90 applications – Harley Davidson PN#45361-90.
